Automation Solutions for Universal Robots

UR+ approved conveyors with URCap control

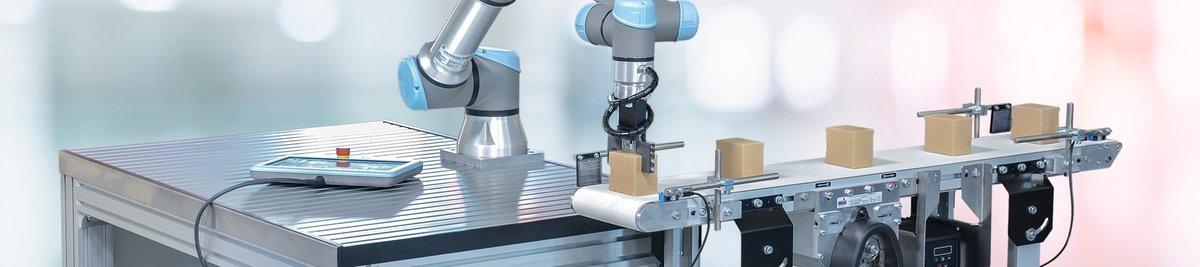

The UR+ approved* belt conveyor system GUF-P 2000 is ideally suited for the easy and reliable use with UR cobots. Using the URCap allows the robot to control operation mode and speed of the conveyor.

The mk-conveyor GUF-P 2000 can be easily integrated and configured into a UR cobot application by using the URCap control. It is compatible with the UR e-series.

The Plug-In allows the robot to control start and stop, forward and reverse and the operation speed of the conveyor. There is also the option to start and stop using sensors or a timer. The programming is carried out conveniently via predefined program nodes directly in the robot control. The software only works if a valid mk machine number is provided.

Free URCap Download

Installation & Operation Manual Download

Features of the UR+ approved belt conveyor GUF-P 2000

UR+ approved: URCap allows the robot to control operation mode and speed of up to two conveyors
Compact aluminium profile based design for easy integration into existing equipment
Choose from a comprehensive range of different widths and lengths
Large selection of standard belts for various products and applications
Wide range of different drives, tails, stands and belt types
Lateral T-slots can be used to attach optional components such as stands, side rails, sensors and other accessories
Crowned driving and idler rollers simplify belt adjustment and help the belt to run in the centre of the conveyor frame
Very short delivery times

Technical data GUF-P 2000

Widths: 50 / 75 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 mm
Lengths: Individual 410 to 10000 mm
Tail: ø 53 mm, knife edge ø 19 mm
Conveyor belt: Wide variety from suitable to unsuitable for accumulated operation
Drive: SEW / AC 230 V / 50 Hz / IP 54 / head or lower belt position
Total load: Up to 75 kg
Speed: Up to 80 m/min
Power transmission: Direct and indirect
Additional options: Side rails, stands, sensors, a.o.

GUF-P 2000 Technical Data Sheet

* What does UR+ approved mean?

UR+ products are peripheral devices such as grippers, vision components and software, as well as conveyors. The manufacturer Universal Robots tests these products for compatibility with the UR cobots and approves them as UR+ products if all requirements are met. UR+ approved products can be seamlessly integrated and can usually be controlled directly via Universal Robots' user interface URCap.

Contact

For custom requests, please contact our technical sales department at info(at)mk-group.com, by phone at +49 2284598-0 or using the contact form below.
