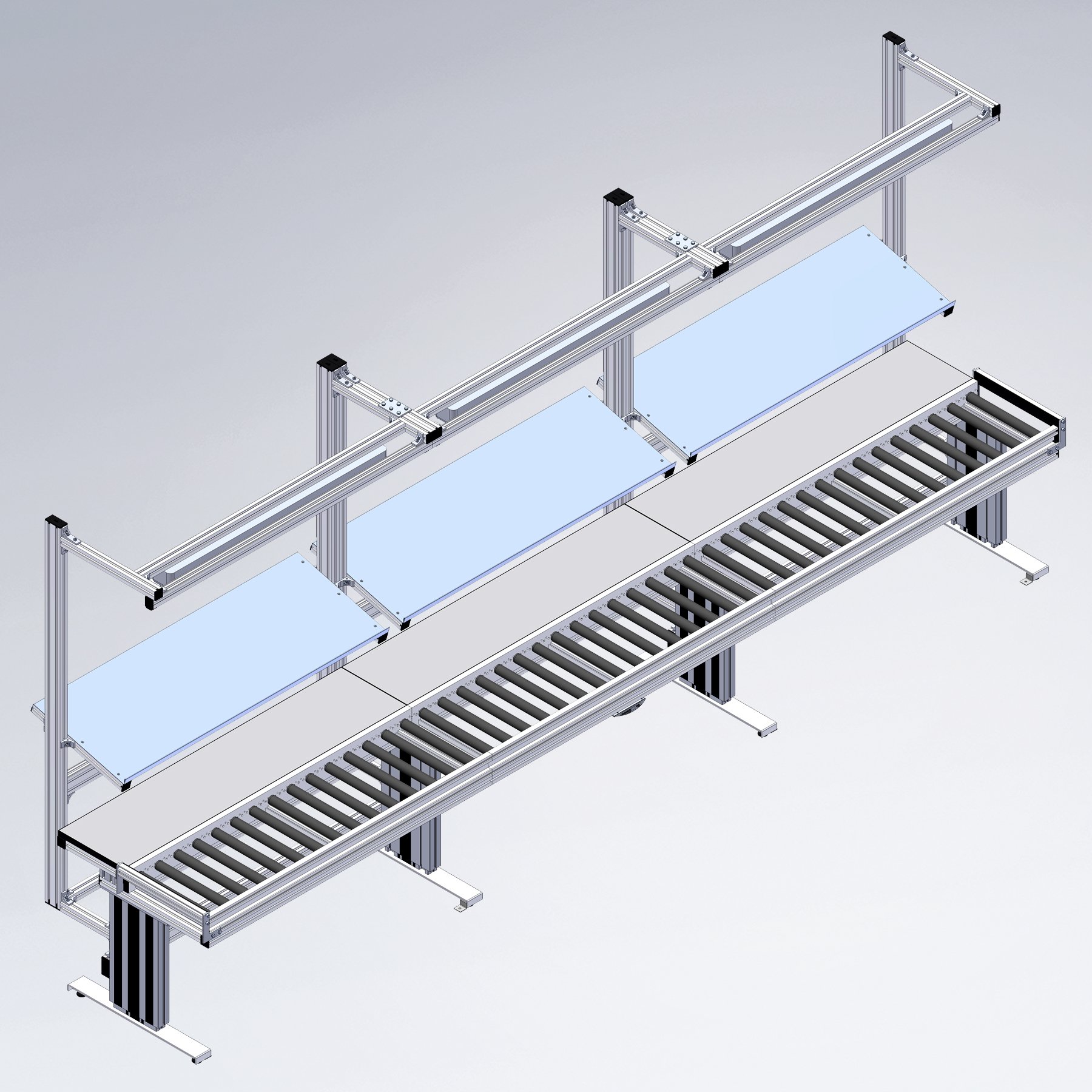

Height-adjustable assembly line with 3 workstations and roller conveyor: The assembly line has 3 workstations with electric height adjustment. This can be easily adapted to different body heights. An RBS-P 2066 gravity roller conveyor with a roller diameter of 40 mm extends across the entire width of the table top. The products can be moved effortlessly from one processing station to the next on this conveyor. Material is supplied via gripper box racks at the rear of the line. Above the workstations, the assembly line has a gantry structure with tool gliders and LED lighting.

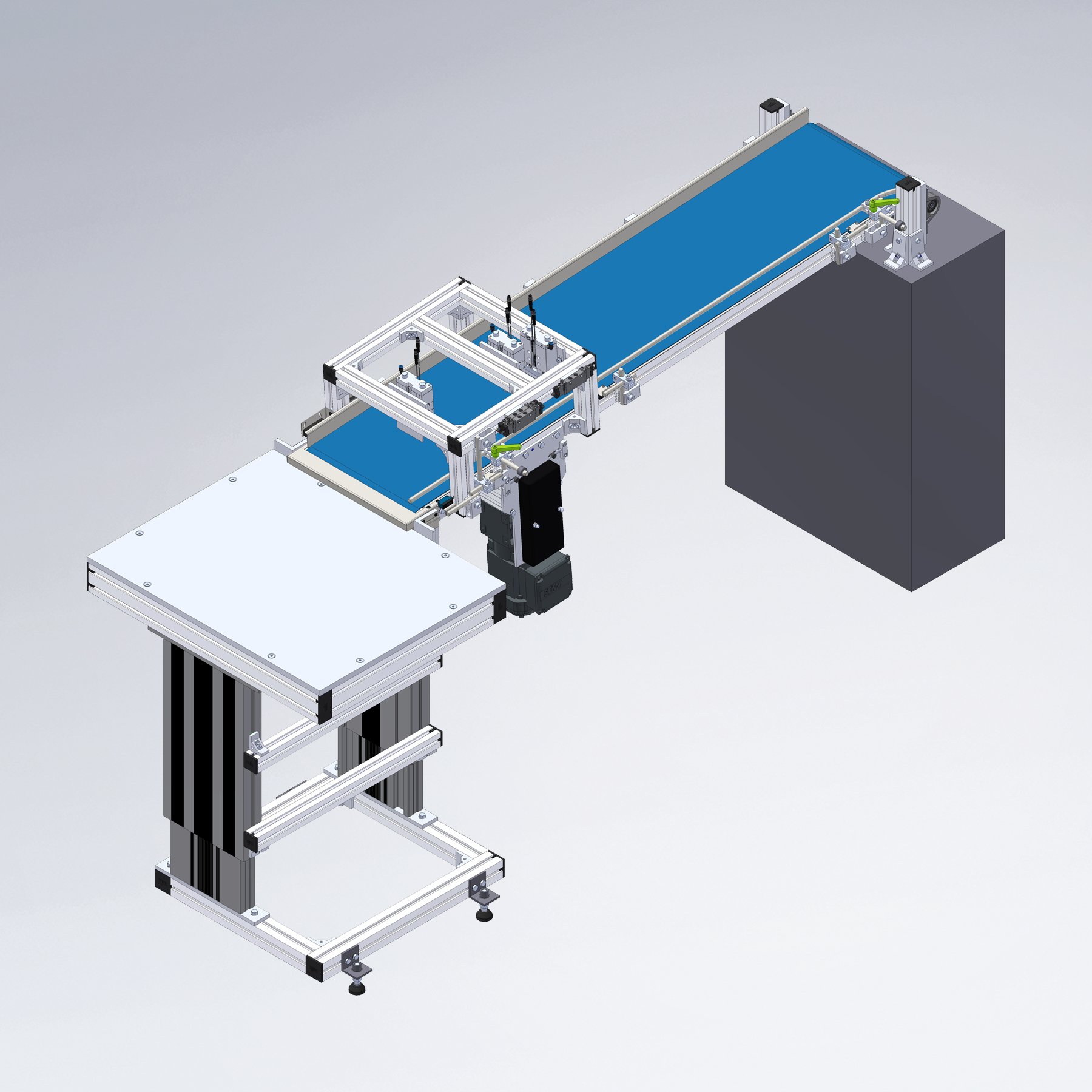

Workstation for component testing with connected, flexibly mounted belt conveyor with stop and separation function: The workstation consists of Series 40 profiles and is equipped with a height-adjustable frame. A robust 12 mm steel plate serves as support. The GUF-P 2000 belt conveyor is attached to both the height-adjustable workstation and the machine positioned in front of it and is flexibly mounted at both ends. The workpieces can be accumulated on the conveyor belt with an integrated stop and separation function. They can be released and pulled onto the inspection table as required using a manual button. Light barriers ensure that the system stops as soon as the workpieces have accumulated to a certain position.
